How Far Can RFID Track? A Complete Guide to RFID Tracking Range

Radio Frequency Identification (RFID) know-how is revolutionizing how we handle property, monitor stock, and improve safety. A standard query that arises is, “How far can RFID monitor?” The reply isn’t simple; the monitoring distance of RFID is influenced by a number of elements, together with the kind of system, frequency vary, energy output, environmental situations, and antenna configuration. This text will present a complete breakdown of RFID monitoring vary—overlaying every part from the fundamentals to sensible functions and the right way to optimize your RFID options for longer-distance monitoring.

1. Understanding RFID Monitoring Vary: The Fundamentals

RFID monitoring vary refers back to the most distance at which a reader can efficiently learn data from an RFID tag. This distance is a important metric for assessing the efficiency of an RFID system and instantly determines the scope inside which it could actually successfully find and handle property, personnel, or items.

In follow, many customers confuse “learn vary” with “monitoring vary.” Though they’re intently associated, there are important variations:

Learn Vary: That is the utmost distance at which a tag can efficiently talk with a reader below ideally suited situations. It’s influenced by elements corresponding to antenna energy, frequency, and environmental situations.

Monitoring Vary: This focuses extra on the efficient, steady identification and localization of tag actions inside sensible utility situations. Monitoring vary emphasizes not simply one-time studying however the system’s capacity to reliably determine tags over an prolonged interval.

For instance, in a warehouse, a tag might sometimes be learn from as far-off as 10 meters; that is the learn vary. Nonetheless, if the aim is to repeatedly monitor the motion of things on a shelf, a extra complicated monitoring vary design is required—contemplating antenna protection, reader placement, and tag orientation, amongst different elements. Understanding the excellence between “studying” and “monitoring” is an important first step in deploying an RFID system. Solely by clarifying this could we choose the suitable RFID sorts and configurations for various functions.

Why Is RFID Monitoring Distance So Vital?

RFID monitoring distance isn’t merely a technical parameter; it considerably impacts the reliability, protection, and operational effectivity of a complete system in real-world environments. Totally different use circumstances have vastly completely different necessities for monitoring distance; making poor decisions can result in protection gaps, asset loss, or operational delays.

Position in Stock Administration
In a warehouse, RFID tags are used to trace the place, standing, and circulate of products. If the system’s monitoring distance is just too brief, objects transferring between cabinets could also be “missed,” affecting the real-time accuracy of stock knowledge. An enough monitoring distance ensures that system updates stock standing in real-time throughout items entry, exit, or relocation, lowering human counting errors and enhancing operational effectivity.

Significance in Actual-Time Location
For hospitals, factories, or massive workplace areas, precisely finding personnel or important gear is important. Solely an RFID system with a enough monitoring vary can obtain cross-area, steady, real-time localization, which is invaluable for emergency administration and asset scheduling.

Differentiated Efficiency in Asset Monitoring
Within the context of an airport, baggage strikes from the check-in counter to the boarding gate and at last to the vacation spot, passing by way of a number of levels. If the RFID system’s protection is inadequate, efficient identification at any stage might result in misplaced or delayed baggage. Conversely, in a logistics heart, whereas monitoring between cabinets may need a smaller vary, it requires high-density, short-range, exact studying. This necessitates versatile pairing of various frequencies and tag sorts primarily based on particular situations.

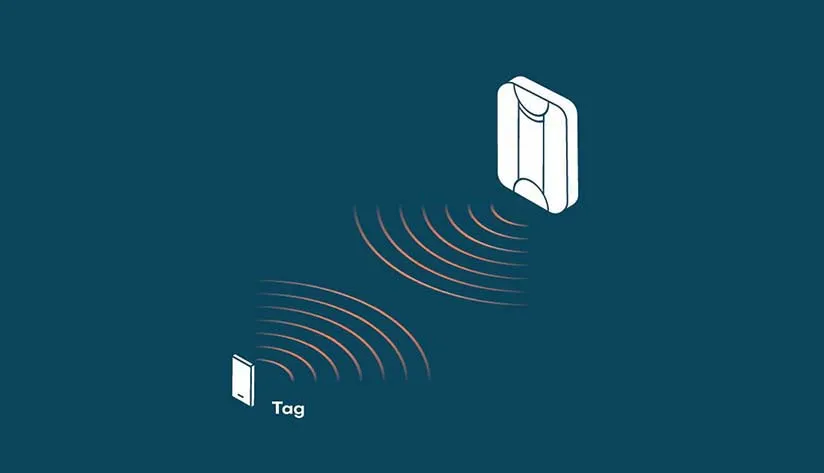

2. Monitoring Vary by RFID Sort: Passive vs Energetic vs Semi-Energetic

The monitoring distance varies considerably amongst various kinds of RFID tags. Understanding these variations is essential for choosing probably the most appropriate RFID know-how primarily based on sensible utility situations, guaranteeing environment friendly useful resource use and enough protection.

Passive RFID

Passive tags would not have an inside battery and rely fully on the electromagnetic indicators emitted by the reader to activate. This design makes them low-cost, small in dimension, and long-lasting, ideally suited for functions the place shorter learn distances are acceptable.

• Monitoring Vary: Sometimes ranges from just a few centimeters to about 10 meters, relying on the frequency and antenna design.
• Typical Purposes: Entry management, library administration, retail merchandise tagging, resort room playing cards, asset monitoring.
• Benefits:
  • Low value, appropriate for large-scale deployments.No battery is required, resulting in low upkeep prices.
  • Lengthy lifespan: It may be used for a few years.
• Limitations:
  • Restricted distance, not appropriate for long-range or real-time monitoring.
  • Weak to interference from steel or liquid environments.
  • Communication should happen throughout the direct affect vary of the reader.

Energetic RFID

Energetic RFID tags include an inside battery and periodically transmit indicators, permitting them to repeatedly ship knowledge while not having to be near a reader. They’re appropriate for long-range, high-dynamic asset monitoring situations.

• Monitoring Vary: Usually ranges from dozens of meters to over 100 meters, and in unobstructed environments, can attain a number of hundred meters.
• Typical Purposes: Automobile monitoring, personnel monitoring, safe space administration, massive gear asset monitoring.
• Benefits:
  • Lengthy vary, appropriate for expansive situations.
  • Permits steady monitoring and real-time location updates.
  • Helps extra knowledge storage and transmission capabilities.
• Limitations:
  • Greater value.
  • Restricted battery life (usually requires substitute each 2-5 years).
  • Usually bigger in dimension and weight.

Semi-Energetic RFID (Battery-Assisted Passive)

Semi-active RFID, often known as battery-assisted passive tags, combines options of each lively and passive tags. They’ve an inside battery that enhances sign response, however they don’t repeatedly emit indicators; as an alternative, they activate communication solely upon receiving a sign from the reader.

• Monitoring Vary: Falls between passive and lively, often starting from 10 to 50 meters.
• Typical Purposes: Priceless asset administration, the place average distance and stability are wanted.
• Benefits:
  • Extra secure sign, higher efficiency than passive tags.
  • Low energy consumption, leading to longer battery life.
  • Decrease value in comparison with lively tags, providing higher cost-performance worth.
• Limitations:
  • Nonetheless requires battery energy.
  • Response frequency is determined by the reader’s set off, making it barely much less real-time than lively tags.

RFID Sort Comparability Desk

By means of the above comparability, it’s clear that various kinds of RFID tags have their very own benefits and drawbacks by way of monitoring capabilities, value, battery life, and relevant situations.

3. What Impacts RFID Monitoring Vary?

The monitoring vary of RFID tags isn’t fastened; it’s influenced by quite a few elements. From technical picks to environmental situations, every facet can decide the effectiveness of the system. Beneath is an in-depth evaluation of the main influencing elements:

3.1 Frequency Varieties

RFID know-how is primarily divided into 4 frequency bands: Low Frequency (LF), Excessive Frequency (HF), Extremely Excessive Frequency (UHF), and Microwave. These frequencies instantly have an effect on sign propagation distance and penetration functionality.

Low Frequency (LF, 125–134 kHz)

• Monitoring Distance: Brief, usually inside 10 cm.
• Benefits: Much less interference from metals and liquids; appropriate for close-range functions like animal monitoring and entry management.
• Disadvantages: Gradual knowledge transmission velocity and bigger antenna dimension.

Excessive Frequency (HF, 13.56 MHz)

• Monitoring Distance: Medium, with ranges of 30 cm to 1 meter.
• Benefits: Excessive stability and robust anti-interference; broadly utilized in libraries, funds, and entry management programs.
• Disadvantages: Vary continues to be restricted; not appropriate for large-scale asset monitoring.

Extremely Excessive Frequency (UHF, 860–960 MHz)

• Monitoring Distance: Longer distance, generally acknowledged inside 5–10 meters, and may exceed 15 meters in optimum situations.
• Benefits: Quick transmission velocity and functionality to learn a number of tags concurrently (robust anti-collision).
• Disadvantages: Vulnerable to interference from metals and liquids; requires optimized antenna and association.

Microwave (2.45 GHz)

• Monitoring Distance: Lengthy, with communication speeds that may attain a number of dozen meters and even a whole bunch.
• Benefits: Appropriate for monitoring high-speed transferring objects, like automobiles at checkpoints.
• Disadvantages: Excessive environmental necessities; indicators can simply attenuate; usually dearer.

In case your aim is to attain wide-ranging monitoring, corresponding to in logistics warehousing or car positioning, UHF or microwave is the best selection. For functions that require excessive stability at medium to shut distances, corresponding to resort locks and entry administration, HF is a extra dependable possibility.

3.2 Antenna Design and Reader Energy

The efficiency of the antenna is essential for the transmission and reception of indicators.

Antenna Dimension and Sort:
Bigger or directional antennas can focus vitality, enhancing long-range communication capabilities. As an illustration, utilizing linear or circularly polarized antennas in shelf programs or fastened passageways can enhance studying accuracy.

Antenna Directionality:
The orientation of the antenna impacts the protection space. If there may be an angular deviation between the tag and the antenna, the studying effectiveness might considerably lower.

Reader Energy Output:
On the whole, the upper the reader energy, the farther the sign protection. Nonetheless, it’s additionally important to adjust to native radio laws. For instance, in Europe and North America, there are limits on UHF energy output.

When deploying programs, it’s essential to decide on the appropriate kind of antenna primarily based on the state of affairs, modify the reader energy, and decide set up angles to make sure optimum protection.

3.3 Environmental and Materials Influences

Even with the best frequency and {hardware} configuration, the precise setting can considerably impression monitoring distance.

Steel Surfaces Reflecting and Absorbing Indicators:
Steel can simply intrude with RF indicators, resulting in learn failures, particularly within the UHF band. Options embody:

• Utilizing metal-specific tags (on-metal tags).
• Including insulating spacers to separate tags from steel surfaces.
• Selecting HF frequencies to cut back interference.

Water and Human Absorption of RF Power:
Particularly, UHF indicators can simply attenuate in excessive humidity or dense human areas. Options embody:

• Utilizing liquid-specific tags (on-liquid tags).
• Designing denser antenna arrays to attenuate blind spots.
• Positioning tags away from liquid containers or physique obstructions.

Partitions and Obstacles:
Buildings like concrete and brick partitions can weaken sign energy. It’s advisable to deploy readers in unobstructed areas or use relay antennas to boost protection.

In airport baggage monitoring, antennas are usually organized on each side of conveyor belts to make sure protection from all instructions.

In conclusion, the elements affecting RFID monitoring vary are multifaceted. Solely by deeply understanding these technical variables can we make optimum configurations in sensible functions. When you’ve got any additional questions or want help with implementing RFID options, be at liberty to ask!

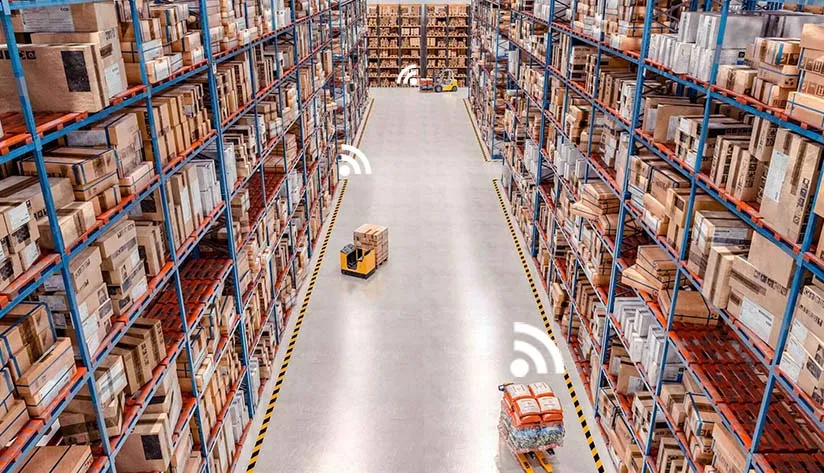

4. Learn how to Lengthen or Optimize Your RFID Monitoring Vary

Even if in case you have chosen the appropriate kind of RFID, particulars within the deployment course of can considerably have an effect on monitoring efficiency. Listed here are a number of efficient strategies to boost monitoring vary.

Select the Proper RFID Sort and Frequency

Totally different utility situations have various necessities for monitoring distance, so choosing the suitable RFID know-how mixture is essential.

Chilly Chain Logistics

• Necessities: Lengthy-distance, secure monitoring in low-temperature environments.
• Advice: Use UHF or lively tags. Energetic tags, with their inside batteries, help long-distance transmission and are perfect for monitoring items in chilly storage.

Warehouse Stock Administration

• Necessities: Items are largely stationary and densely tagged.
• Advice: Make the most of UHF passive tags with a multi-antenna array. UHF has a large studying vary and low value, making it appropriate for bulk scanning.

Lodge Entry Management or Membership Playing cards

• Typical Use Case: Brief-distance and near-field functions.
• Advice: Go for HF (13.56 MHz) passive tags. This frequency has robust anti-interference skills and dependable identification.

Medical Gear Administration

• Necessities: Tags connected to steel gadgets or in proximity to people.
• Advice: Use HF or metal-specific UHF tags to forestall sign reflection or attenuation.

Tip: Assess your setting, monitoring distance, real-time necessities, and finances to prioritize probably the most appropriate RFID mixture. This avoids losing investments because of “overkill” or “underperformance” in know-how.

Use Correct Antennas and Reader Placement

The right antenna structure is essential for the efficiency of the monitoring system.

Reader Set up Peak and Angle

• It is suggested to put in readers at a peak of two–3 meters above the products, angled downward at 45 levels to assist cowl each the ground space and the edges of cabinets.

Protection Space Analysis

• Based mostly on monitoring vary and tag density, choose applicable antenna achieve. For giant warehouses, a number of high-gain directional antennas could be arrange, whereas omnidirectional antennas can create a “learn/write hall” at entrances.

Multi-Antenna System Optimization

• Utilizing mixtures of a number of antennas to cowl blind spots, together with software program settings for learn precedence and space division, can considerably enhance studying accuracy.

Avoiding Overlapping Interference Between Readers

• When a number of readers function concurrently, frequency bands or timing must be staggered to forestall sign interference.

Sensible Tip: Make the most of skilled RFID deployment instruments (like RFID Simulation Software program) for pre-deployment simulations to determine potential blockages and overlaps upfront.

Keep away from Frequent Vary Limiters

After deploying the system, numerous frequent “invisible killers” can undermine monitoring efficiency.

Sign Blockers: Gadgets corresponding to steel cabinets, water bottles, and human our bodies can mirror or take up indicators. Options embody:

• Adjusting tag placement.
• Guarantee tags don’t face away from the antenna.
• Utilizing reflective antennas or cross-angle recognition options.

Tag Obstruction: Tags lined by different objects or adhered to hard-to-read surfaces must be positioned in seen, unobstructed areas.

Extreme Tag Density: Having too many tags in proximity can result in “collision points,” inflicting learn failures. Implementing anti-collision protocols or grouped studying methods can optimize the system.

Improper Reader Energy Settings: Too low energy means insufficient studying distance; too excessive energy dangers interference. A number of exams in a managed setting might help discover the optimum stability.

Reminder: Many points don’t stem from system efficiency however relatively from deployment and utilization element missteps. Repeatedly testing system protection is important to sustaining optimum efficiency.

Conclusion: Select the Proper RFID Monitoring Distance Answer

Totally different RFID monitoring distances imply various ranges of enterprise visibility effectivity. Brief-range options are appropriate for exact management and high-security situations, whereas medium to long-range choices present the inspiration for large-scale dynamic administration. The last word efficiency of your system is determined by whether or not you:

• Selected the suitable know-how kind and frequency;
• Designed an inexpensive structure of antennas and readers;
• Prevented frequent sign interferences and configuration errors.

We advocate conducting a state of affairs evaluation and on-site testing earlier than deployment, repeatedly adjusting system parameters primarily based on utility objectives. Solely by aligning know-how with technique are you able to really unlock the worth of RFID, enhancing asset visibility and operational effectivity. For those who’re prepared to boost monitoring effectivity, contact us to study extra about custom-made RFID options that may assist your enterprise obtain extra environment friendly asset administration and real-time positioning.

FAQs

1. What’s the most vary of RFID?
The utmost monitoring distance of RFID is determined by the kind of know-how used and the environmental situations.

• Passive RFID: Sometimes ranges from 1 to 10 meters, with a most of about 15 meters.
• Energetic RFID: Can attain a number of dozen meters, with optimum situations exceeding 100 meters, and doubtlessly even additional.
• Semi-Energetic RFID (Battery-Assisted Passive): Has a variety in between, often round 10 to 50 meters.
  Remember the fact that precise monitoring distances are influenced by environmental elements (like obstacles and steel) and the ability of your gadgets.

2. Why is my RFID vary so brief?
In case your RFID system has a brief monitoring distance, a number of causes is likely to be contributing:

• Incompatible Tag Sort: Utilizing passive tags usually ends in shorter monitoring distances. You could want to contemplate lively or semi-active tags if longer distances are required.
• Improper Antenna Placement: If the antenna’s angle or set up peak is inaccurate, it might result in weakened indicators or lowered vary.
• Environmental Interference: Gadgets like steel, water sources, or partitions can intrude with RF indicators, leading to decreased studying distances. Optimization of tag placement or use of customized antennas might help.
• Inadequate Reader Energy: Low-power readers might result in insufficient sign protection. Adjusting energy settings or utilizing extra strong gadgets may enhance vary.

3. Can RFID work by way of partitions or steel?
RFID indicators can penetrate partitions to a sure extent, however steel poses a major barrier to RFID indicators.

• Partitions: Usually, RFID indicators can go by way of partitions, however the distance might lower, particularly with thicker partitions. HF tags often penetrate obstacles higher than UHF tags.
• Steel: Steel objects are the largest hurdle for RFID. Steel can mirror or take up RFID indicators, considerably lowering monitoring distances. If it’s worthwhile to use RFID in steel environments, think about using specialised tags designed for steel surfaces.

4. What’s the finest RFID kind for long-range monitoring?
For functions requiring long-distance monitoring, lively RFID is the best selection.
Energetic RFID tags, with their inside batteries, present stronger indicators, supporting monitoring distances from a number of dozen meters to over 100 meters—ideally suited for situations like car monitoring, personnel location, and large-scale asset administration.
For frequent warehousing and logistics administration, UHF passive RFID can also be possibility, providing a average vary at a comparatively low value.

5. Is GPS higher than RFID for monitoring?
GPS and RFID are fitted to completely different functions in positioning and monitoring.

• GPS: Finest for outside or wide-area monitoring, particularly for real-time location monitoring. GPS indicators don’t work successfully indoors or in enclosed areas and depend on satellite tv for pc programs, which could be affected by climate and environmental elements, impacting positioning accuracy.
• RFID: Primarily used for brief to medium-distance merchandise or asset monitoring, notably fitted to indoor environments or well-defined areas like warehouses, hospitals, and lodges. RFID doesn’t require satellite tv for pc help, provides excessive positioning accuracy, and may perform effectively in complicated environments.
  Due to this fact, the selection between GPS and RFID is determined by the precise utility. Each could be mixed to attain a extra complete monitoring resolution.

Beneficial Merchandise

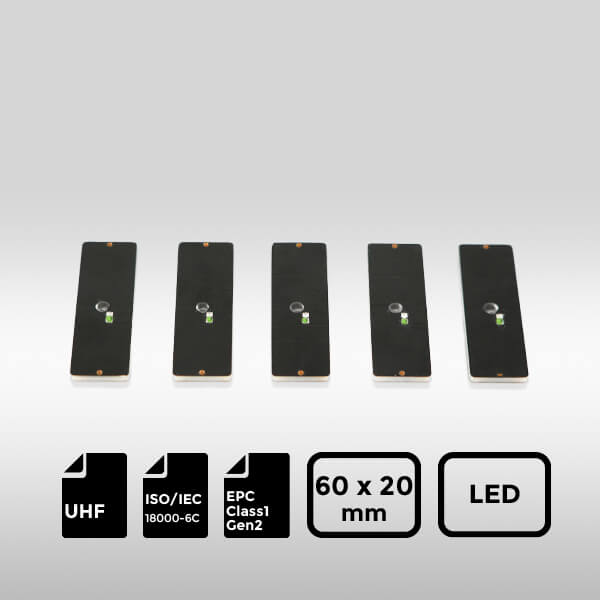

UHF On-Steel LED Tag 60×20×3mm | ISO18000-6C
