How Do Passive RFID Tags Get Power?

Radio-frequency identification (RFID) expertise performs an necessary function in varied industries by way of automated identification and information assortment. Among the many several types of RFID tags, passive RFID tags are notably engaging for his or her simplicity and cost-effectiveness. A key characteristic of passive RFID tags is their capability to function with out batteries. Many individuals are very inquisitive about how passive RFID tags get energy.

Passive RFID tags get energy by receiving radio frequency indicators emitted by RFID readers. The electromagnetic discipline generated by the reader induces currents within the antenna of the tag, that are transformed into DC energy and provided to the chip contained in the tag for information transmission. With out the necessity for built-in batteries, the operation of the tag relies upon solely on exterior radio frequency indicators.

In the event you don’t learn about passive RFID tags and wish to know the detailed rules and functions of how the tag obtains energy, please proceed studying under. We’ll delve into the precise technique of electromagnetic induction, power conversion, and its efficiency in sensible functions.

What Are Passive RFID Tags?

A passive RFID tag is an RFID tag that doesn’t have an inner energy supply. In contrast to lively RFID tags, which have an inner battery, passive tags depend on power transmitted by the RFID reader. These tags encompass a microchip and an antenna that work collectively to allow wi-fi communication with the reader.

Elements of a Passive RFID Tag

Microchip: Incorporates the tag’s distinctive identifier and generally extra information storage.
Antenna: Receives power from the reader and transmits information again to the reader.

How Passive RFID Tags Get Energy

Subsequent, we’ll take a better take a look at how passive RFID tags cleverly get energy from exterior indicators to attain their environment friendly operation.

Inductive Coupling

The principle technique for passive RFID tags to get energy is inductive coupling. This course of includes the switch of power between two coils: one within the RFID reader and the opposite within the RFID tag. Listed below are the detailed steps:

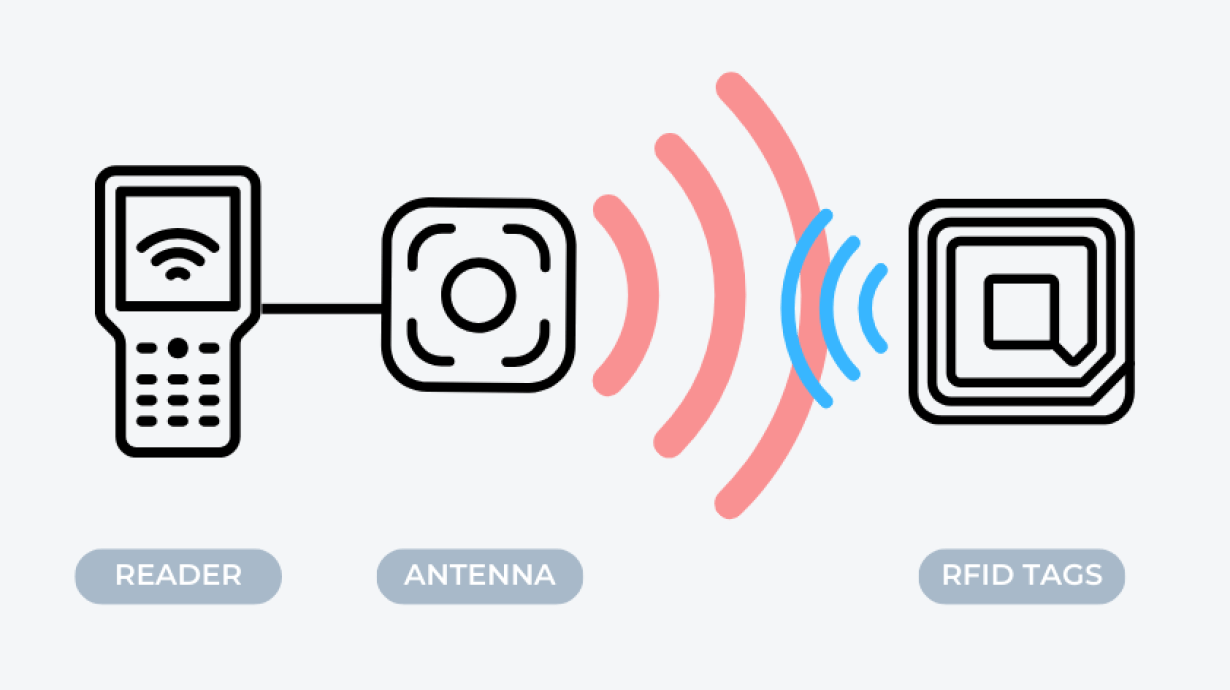

Vitality Switch: The RFID reader transmits an electromagnetic discipline by way of its antenna.
Inductive Coupling: The electromagnetic discipline generates an electrical present within the passive RFID tag’s antenna.
Energy Provide: This present gives the tag’s microchip with the required power.
Knowledge Switch: After the tag is powered, its microchip sends information again to the reader by way of the identical antenna.

Capacitive Coupling

One other much less frequent technique is capacitive coupling. This technique depends on the capacitance between the RFID reader and the tag. Though capacitive coupling shouldn’t be as extensively used as inductive coupling, it is usually efficient in some functions.

Capacitive Subject: The RFID reader creates a capacitive discipline.
Capacitive Switch: The tag’s antenna interacts with this discipline to generate a voltage.
Energy Provide: The voltage gives power to the microchip contained in the tag.

Resonant Inductive Coupling

Resonant inductive coupling is a sophisticated expertise utilized in some passive RFID methods. This technique improves the effectivity of power switch by adjusting the resonant frequency of the reader and tag antennas.

Resonance: The reader and tag antennas are tuned to the identical frequency.
Environment friendly Vitality Switch: Resonance improves the effectivity of power switch between the reader and the tag.
Prolonged Vary: This technique can lengthen the communication vary of passive RFID tags.

Components Affecting Vitality Switch

Now that we perceive how passive RFID tags get their energy, we’ll discover the important thing elements that have an effect on power switch effectivity to raised perceive the optimization house for tag efficiency.

Distance Between Reader and Tag

The gap between the RFID reader and tag performs a essential function within the effectivity of power switch. The nearer the tag is to the reader, the extra environment friendly the power switch. As the space will increase, the power obtained by the tag decreases, which may have an effect on its efficiency.

Tag and Reader Antenna Design

The antenna design within the reader and tag impacts the effectivity of power switch. Components resembling the dimensions, form, and materials of the antenna have an effect on the power of the electromagnetic discipline and the quantity of power obtained by the tag.

Working Frequency

Passive RFID methods function at quite a lot of frequencies, together with low frequency (LF), excessive frequency (HF), and ultra-high frequency (UHF). Frequency impacts the vary and power switch effectivity of the RFID system. For instance, UHF tags usually have an extended vary and might function successfully at bigger distances, whereas LF and HF tags have a shorter vary.

Software of Passive RFID Tags

After mastering the facility acquisition precept and influencing elements of passive RFID tags, we’ll proceed to discover the efficiency and benefits of those tags in varied sensible functions to reveal their extensive software in numerous industries.

Retail and Stock Administration

In retail environments, passive RFID tags are used for stock administration and asset monitoring. They assist retailers monitor stock ranges, streamline checkout processes, and scale back theft.

Provide Chain and Logistics

Passive RFID tags play an necessary function within the provide chain and logistics business. They’re used to trace items from manufacturing to supply, guaranteeing the correct and environment friendly stream of merchandise.

Healthcare

Within the healthcare discipline, passive RFID tags are used for affected person identification, gear monitoring, and stock administration. They enhance affected person security and simplify hospital operations.

Entry Management

Passive RFID tags are additionally utilized in entry management methods. They permit safe entry to buildings and restricted areas by permitting licensed personnel to cross by way of entry factors.

Benefits of Passive RFID Tags

Primarily based on the above, let’s check out some great benefits of passive RFID tags.

Value-effectiveness

One of many primary benefits of passive RFID tags is their cost-effectiveness. Since they don’t require batteries, they’re cheaper to fabricate and deploy than lively RFID tags.

Lengthy Life

Since they don’t have batteries, passive RFID tags have an extended life. They’re appropriate for functions that require long-term use.

Upkeep-free Operation

Passive RFID tags with out batteries require minimal upkeep. They’ll function reliably in quite a lot of environments with out the necessity for frequent substitute.

Challenges and Limitations

After recognizing some great benefits of passive RFID tags, we additionally must deal with their challenges and limitations in an effort to totally perceive their efficiency and room for enchancment in sensible functions.

Restricted Vary

Passive RFID tags usually have a shorter vary than lively RFID tags. This limitation is because of their reliance on power transmitted by the reader/author.

Environmental Interference

Environmental elements resembling metallic surfaces and liquids might intrude with the electromagnetic discipline and have an effect on the efficiency of passive RFID tags.

Knowledge Capability

Passive RFID tags usually have restricted information storage capability in comparison with lively tags. This limitation might restrict the quantity of data that may be saved on the tag.

Future Tendencies in Passive RFID Know-how

Ongoing analysis is dedicated to bettering the effectivity of passive RFID tags. Advances in antenna design and power harvesting methods are anticipated to extend power switch effectivity and lengthen the vary of passive RFID methods. The combination of passive RFID tags with the Web of Issues (IoT) is anticipated to drive innovation throughout industries. This integration will make monitoring and information assortment methods extra clever and automatic.

Future developments might result in new functions for passive RFID tags. For instance, they might be utilized in good packaging, superior logistics methods, and extra subtle entry management options.

Conclusion

Passive RFID tags are a key part in fashionable identification and monitoring methods. Their capability to function with out batteries, coupled with advances in expertise, make them precious belongings in quite a lot of industries. Understanding how these tags derive energy by way of strategies resembling inductive coupling, capacitive coupling, and resonant inductive coupling gives deep insights into their performance and functions. Regardless of some challenges, continued innovation guarantees to extend the effectivity and flexibility of passive RFID tags, paving the way in which for future developments.

FAQs

1. How does frequency have an effect on the efficiency of passive RFID tags?
The working frequency of a passive RFID tag impacts its learn and write vary and efficiency. Decrease frequencies usually provide shorter vary however carry out higher in difficult environments, whereas increased frequencies provide longer vary and sooner information transmission.

2. How far can a passive RFID tag learn and write?
The learn and write distance of a passive RFID tag usually ranges from a couple of centimeters to a number of meters, relying on elements such because the tag design, antenna kind, and working frequency.

3. Can passive RFID tags work in excessive environments?
Passive RFID tags can function in quite a lot of environments, however their efficiency could also be affected by excessive temperatures, excessive humidity, and interference from metallic or liquids.

4. What’s the distinction between passive and lively RFID tags by way of energy provide?
Passive RFID tags get hold of energy from the electromagnetic discipline of the RFID reader, whereas lively RFID tags have inner batteries to offer energy for the tag’s operation and communication.

5. Can passive RFID tags be reused?
Sure, passive RFID tags might be reused. Since there is no such thing as a battery, their lifespan is longer and they’re appropriate for functions that require sturdiness and long-term use.
