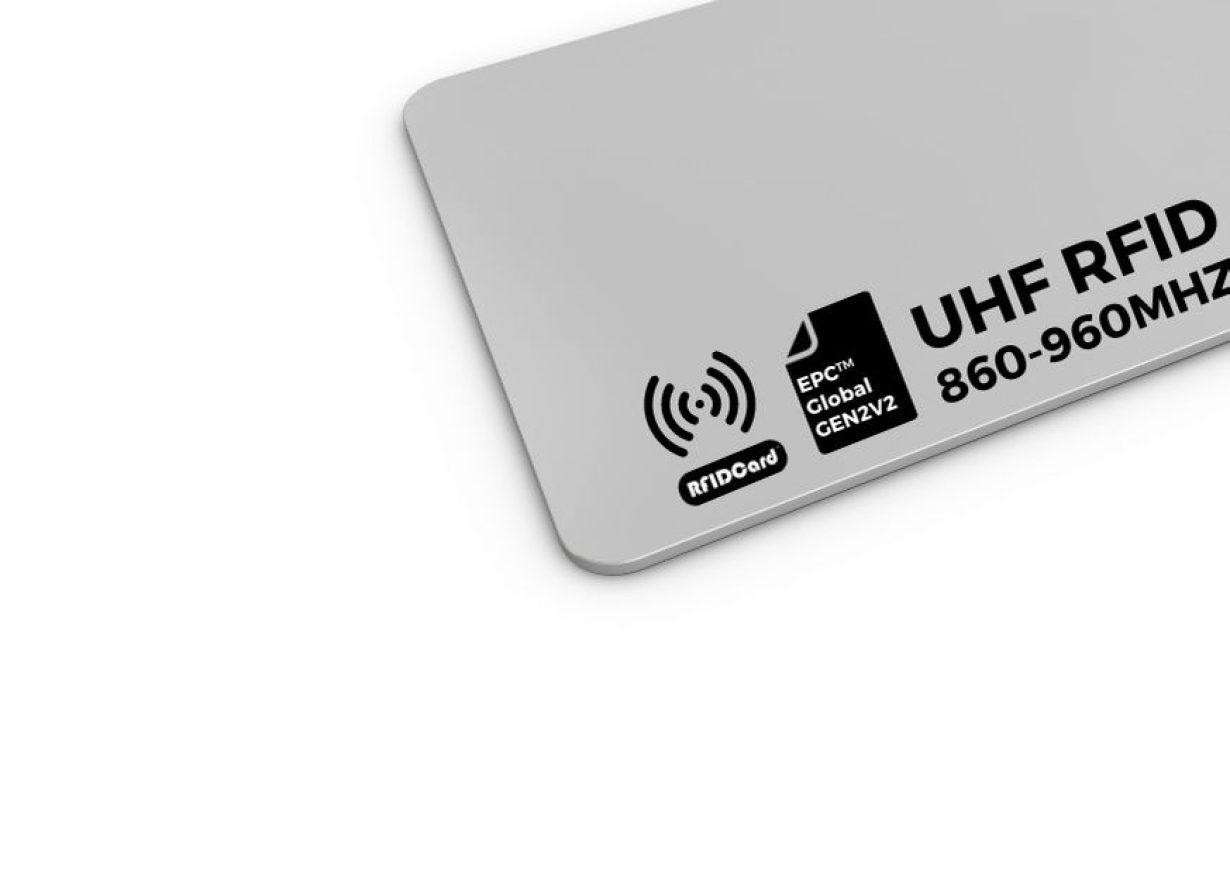

EPC™ Radio Frequency Identity Protocols Generation-2 UHF RFID

EPC RF id protocols gen-2 UHF RFID explains the signaling layer and logical necessities for gadgets that use passive-backscatter, ITF techniques for communication. In ITF techniques, the interrogator talks first and communicates with the tag on the 860 MHz to 960 MHz frequency vary. This protocol additionally specifies logical working procedures, insurance policies, and instructions between interrogator and tag.

EPC RF id protocols gen-2 additionally represents addresses of tag reminiscence, command codes of interrogator, and bit fields between interrogator as RFU (Reserved for future use). GS1 EPCglobal is denoting these RFU values for future extensibility.

It helps the logical air interface procedures that outline the communication hyperlink parameters between interrogator and tag corresponding to signaling layer, data-coding expertise, collision arbitration algorithm, transmitting and receiving construction. As well as, it screens tag authentication, interrogator authentication and mutual authentication between tag & interrogator.

ITF RFID techniques include two parts; interrogator/reader and tag/label. The interrogator sends RF modulating sign to the tag throughout the 860 MHz to 960 MHz frequency vary. The aim of sending a continuous-wave RF sign is to activate the tag on account of its passive nature. The RF sign consists of each data and working vitality. After buying working vitality from the interrogator, the tag responds by way of backscattering phenomena during which it modulates the reflection coefficient of its antenna.

The move of communication between interrogator and tag follows the half-duplex mode; just one element sends data and one other element receives it and vice versa. Contemplating the ITF RFID system, the interrogator talks first, tag listens to that data, and this course of repeats itself.

If telecommunication distributors and industrial associates want this protocol for his or her RF techniques, the elements (interrogators and tags) should adjust to all the necessities and specs talked about on this protocol. Interrogator and tag should implement the obligatory instructions, modulate and demodulate a compulsory set {of electrical} alerts and conform to all of the radio alerts talked about on this protocol. To work below this protocol, the interrogator and tag shall not implement any instructions that battle with this protocol.

EPC RF id protocols gen-2 UHF RFID makes use of 4 varieties of instructions;

Necessary Instructions

Compliant interrogators and tags should assist all of the necessary instructions.

Non-obligatory Instructions

Compliant interrogators and tags could or could not assist all of the non-compulsory instructions. Nevertheless, if any interrogator or tag helps any of the non-compulsory instructions, it shall be in response to necessities talked about on this protocol.

Proprietary Instructions

All of the proprietary instructions talked about on this protocol are envisioned for the manufacturing course of and should not be enabled within the field-deployed RFID techniques.

Customized Instructions

Like proprietary instructions, customized instructions are additionally supposed for manufacturing functions. The interrogator shall adjust to customized instructions solely after performing the next operations;
