Detailed explanation in one article: RFID workflow

In right this moment’s data age, RFID (radio frequency identification) expertise can also be continuously creating and maturing. With its excessive effectivity, accuracy and non-contact traits, it performs an essential position in lots of industries.This text will analyze the workflow and core mechanism of RFID intimately to assist readers achieve a deeper understanding of how this expertise works.

Table of Contents

RFID workflow help

Supporting the RFID workflow is the RFID system, which primarily consists of three components: RFID tags, RFID readers and RFID antennas.

RFID tag: That is the information service of the RFID system, often known as a transponder or digital tag. It normally accommodates a chip and an antenna to retailer data and talk with a reader through wi-fi alerts. RFID tags could be lively or passive.

Energetic RFID tags have their very own energy supply (normally a battery) and may actively transmit alerts. The principle options embody: massive reminiscence and storage capability, lengthy communication distance, normally as much as tens to lots of of meters, excessive value, and quick life.

Passive RFID tags haven’t any built-in energy provide and depend on the vitality generated by the induction of electromagnetic waves emitted by the reader to activate and reply to the sign. The principle options embody: low value, sturdy adaptability to the atmosphere, comparatively small storage capability, and comparatively quick communication distance, typically throughout the vary of some centimeters to a number of meters.

RFID reader/author: The reader/author is the core system of the RFID system. It’s answerable for sending radio frequency alerts and receiving information from tags. The reader/author accommodates elements resembling a radio frequency module, a management unit, and an antenna, and may establish and skim the knowledge within the tag, or write the knowledge into the tag.

RFID antenna: The position of the antenna within the RFID system is to transform the radio frequency sign generated by the reader into electromagnetic waves and radiate them, and to obtain the radio frequency sign returned by the tag. Antennas play a significant position within the studying and writing distance and stability of RFID methods.

Detailed rationalization of RFID workflow

The RFID workflow could be roughly divided into the next steps:

Tag activation: When the reader senses the RFID tag, it emits a radio frequency sign of a particular frequency. After the tag receives these alerts, the inner chip converts vitality and prompts the circuit contained in the tag.

Knowledge studying: The activated tag will ship its saved data to the reader via wi-fi alerts. After the reader/author receives this data, it converts it into a knowledge format that the pc can acknowledge and transmits it to the background system for additional processing.

Knowledge processing: The reader and author sends the information to the backend system for evaluation, storage, question, statistical evaluation and a sequence of processing operations.

Knowledge writing (elective): In some circumstances, the reader can even write information to the tag. That is normally achieved when the tag must be initialized, up to date or modified.

Within the entry management system, the workflow of RFID

Entry management methods are one of the extensively used eventualities for RFID. Typically talking, we take out the cardboard and swipe it within the right place, and the door will open. And we are able to’t see its interior workings. In actual fact, within the entry management system, RFID (radio frequency identification) expertise can even work based on the above course of.

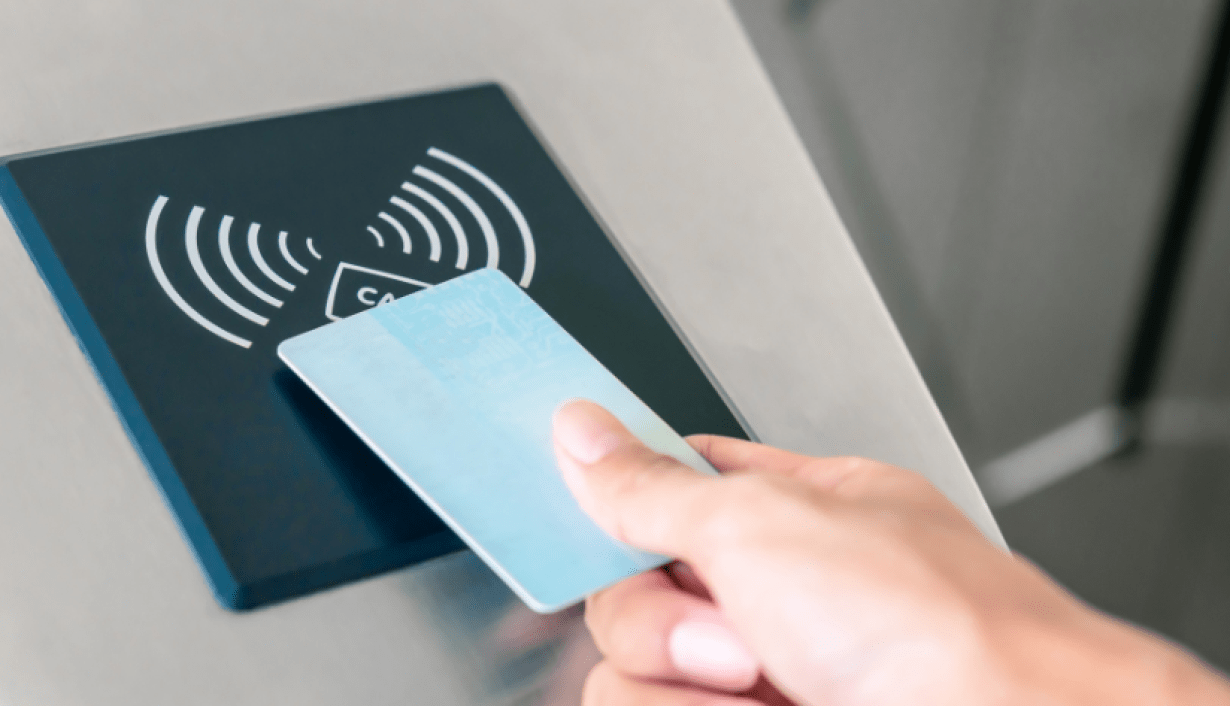

Once we carry the RFID card near the reader-writer of the forbidden system, the reader-writer will ship out a sign to activate the tag within the RFID card. The activated RFID tag will then ship the sign again to the reader-writer, and the reader-writer will course of the sign. Decode after which confirm the permissions. If handed, the door will open robotically.

It may be seen from this that in entry management methods, the tags typically used are passive as a result of they don’t require an extended studying vary and a big storage capability. Generally used RFID chips embody: NTAG®216, MIFARE Ultralight® EV1, TK4100, EM4200, and many others. If you wish to know extra about RFID tags utilized in entry management methods, you may click on right here to be taught extra.

After all, along with entry management methods, RFID expertise has been extensively utilized in a number of industries with its distinctive benefits. By understanding the elements and workflow of an RFID system, we are able to achieve a deeper understanding of how this expertise works. Sooner or later improvement, with the continual development of expertise and the continual enlargement of utility eventualities, RFID expertise will present its big potential and worth in additional fields.

RFID Workflow FAQs

How far is the studying distance of RFID tags?

The studying distance of RFID tags relies on many components, together with the transmit energy of the reader, the receiving sensitivity of the tag, environmental interference, and many others. Typically talking, the studying distance of RFID tags can vary from a number of centimeters to tens of meters.

Can RFID expertise penetrate obstacles for studying?

The studying capabilities of RFID expertise are affected by obstacles. Typically talking, RFID expertise can not penetrate extremely conductive obstacles resembling metallic for studying. Nevertheless, for non-metallic obstacles, resembling paper, plastic, and many others., RFID expertise can penetrate and skim to a sure extent.

What’s the storage capability of RFID tags?

The storage capability of RFID tags varies relying on the tag sort and chip design. Typically talking, the storage capability of RFID tags can vary from tens of bytes to a number of megabytes. For many utility eventualities, the storage capability of RFID tags is ample to fulfill the wants.
