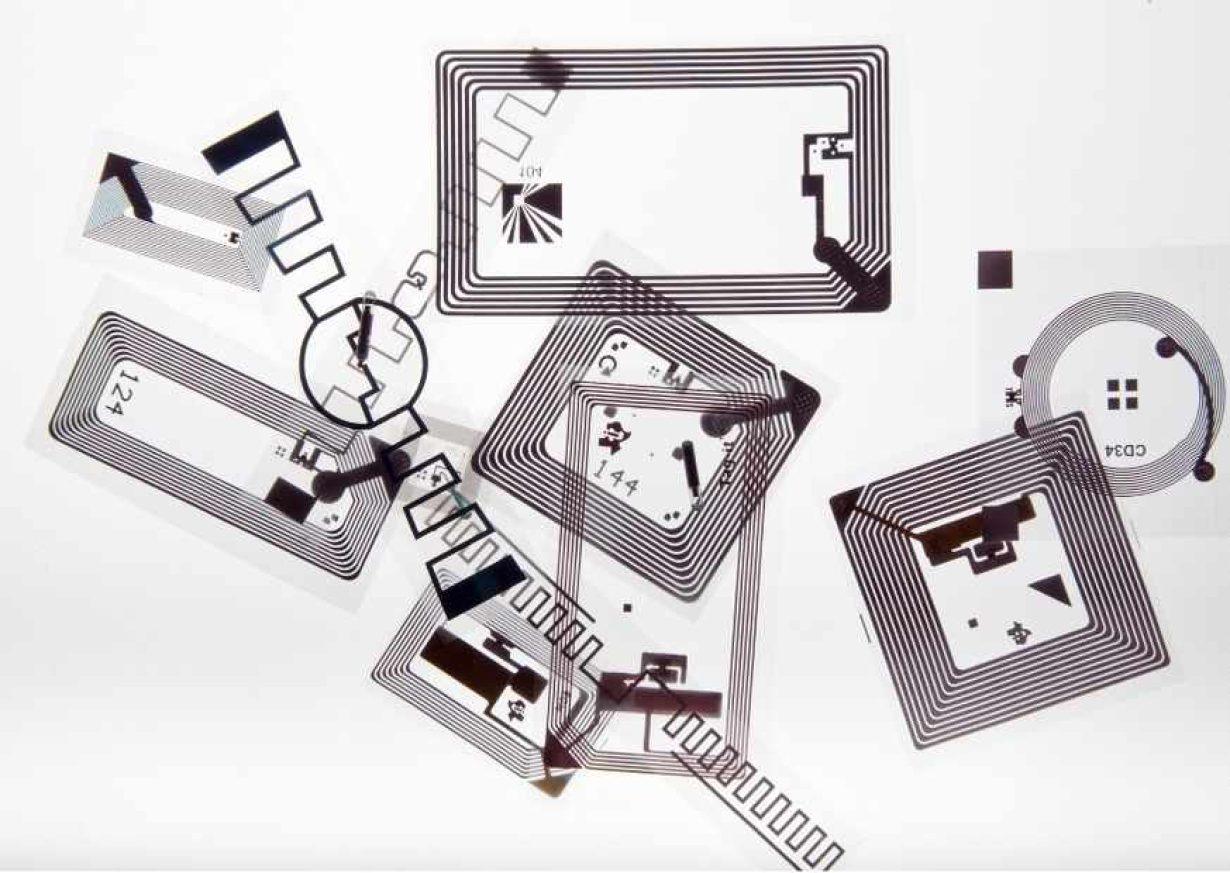

Brief Intro a Few Types of UHF RFID Antennas

A UHF RFID antenna operates between 860-960MHz frequency vary to catch the EMF (Electromagnetic Area) radiated by the RFID reader. Relying upon the frequency and skim vary, there are 5 several types of UHF RFID antennas that can be launched on this article.

Table of Contents
Toggle
Harting Locfield Antenna

Harting locfield antenna or traveling-wave antenna is predicated on typical coaxial cable. The coaxial cable acts as an antenna and will be deployed to help any three-dimensional form. It allows customers to create their very own custom-made UHF RFID antenna studying zone. The RF wave travels alongside the dimension of coax cable.

Though the everyday learn vary of Harting Locfied antenna is proscribed, it could transfer from a couple of centimeters to some meters. The short-range, excessive achieve, and millimetre diameter of the Harting Locfield antenna are distinctive properties, permitting it to connect with the RFID reader straight. The cable form of the Harting Locfield antenna allows them to learn RFID tags in numerous areas.

The distinctive form and options of the Harting Locfield antenna make it appropriate for various functions reminiscent of sensible cabinets, RFID in complicated situations, machines, exit gates, and server racks in stock controls. Thus, customers can combine Harting Locfield antenna to nearly any cupboards, steel enclosures and racks. However, the person should create a normal spacing/part between steel and antenna to accumulate a high-quality RF sign.

Impinj Mini-Guardrail Antenna

The Impinj Mini-Guardrail Antenna has a small read-range zone. It may possibly learn lower than and equal to 7.5cm. As a consequence of restricted range-zone, it really works ideally for managed functions and small enclosures reminiscent of entry management, encoding station based mostly on high-speed, ticketing, packaging traces, pass-throughs, and so forth. All these functions will be achieved at restricted prices and clean set up.

Being a near-field antenna, it’s the utmost selection for item-level identification. Many of the item-level functions don’t require excessive protection space and size as a result of their function is to read-only single tag in a dense atmosphere. Consequently, Impinj Mini-Guardrail Antenna supplies optimized outcomes for a dense atmosphere reminiscent of;

Checking tickets on the toll stations
Checking tickets on the railway stations
Entry management
Doc administration

Keonn Advantenna p-12 Antenna

Keonn Advantenna-p12 has EU and US variations. The EU model operates between 865 to 868 MHz and within the US model, it operates between 902 to 928 MHz frequency vary. The Keonn has designed compact-2 RFID UHF parts patch antenna having a round polarization and a radiation sample thought-about by a 60-degree beam width directed on the antenna lengthy edge and 90-degree directed on the brief, lengthy edge.

Keonn Advantenna-p12 incorporates a skinny kind issue, enabling it to assimilate contained in the objects reminiscent of garments, jewelry, sneakers, and so forth. It may be used as a loss-prevention system at retail shops.

One other sturdy characteristic of this antenna is that it’s simple to combine them with pedestals digital article surveillance (EAS) relying on acousto-magnetic expertise. The EAS constructed on acousto-magnetic expertise converts pedestals into hybrid schemes that revolve round each RFID and acousto-magnetic.

MTI-MT-262006 Antenna

It’s thought-about a long-range UHF RFID antenna with a excessive achieve of 9 dBi, allowing it to make use of in each indoor and outside functions. With the MTI-MT-262006 antenna, a person can place a tag at any orientation as a result of it’s a circularly polarized antenna.

There are additionally known as panel antennas, and a mixture of a number of panel antennas can be utilized in functions that require protection of mounted zone reminiscent of entry management on toll stations or parking areas.

Occasions-7 A6590C Antenna

Just like the MTI-MT-262006 antenna, it’s also a circularly polarized antenna and supplies 9 dB achieve. It may possibly help long-range and indoor functions reminiscent of attendance monitoring. In distinction to the above, it presents a extremely versatile kind issue and in depth antenna to cowl the calls for of the next functions;
